FAIRINO

FAIRINO is a cobot company that prioritizes supply chain innovation and has achieved independent R&D of all core components.

FAIRINO improves the efficiency of human-robot collaboration, accelerates enterprise automation, reduces footprint, and lowers the cost of collaborative robots.

FAIRINO continues to innovate tools and processes to reduce costs and improve efficiency, and is committed to making products that are affordable to everyone.

ROBOT SPECIFICATIONS

Product FR3 FR5 FR10 FR20
Lifting capacity 3 kg (max: 5 kg) 5 kg (max: 7 kg) 10 kg (max: 14 kg) 20 kg (max: 25 kg)
Reach 622 mm 922 mm 1400 mm 1854 mm
Accuracy ±0,02 mm ±0,02 mm ±0,05 mm ±0,1 mm
Axis 1: range, speed ±175°, ±180°/s ±175°, ±180°/s ±175°, ±120°/s ±175°, ±120°/s
Axis 2: range, speed +85°/-265°, ±180°/s +85°/-265°, ±180°/s +85°/-265°, ±120°/s +85°/-265°, ±120°/s
Axis 3: range, speed ±150°, ±180°/s ±160°, ±180°/s ±160°, ±180°/s ±160°, ±120°/s
Axis 4: range, speed +85°/-265°, ±180°/s +85°/-265°, ±180°/s +85°/-265°, ±180°/s +85°/-265°, ±180°/s
Axis 5: range, speed ±175°, ±180°/s ±175°, ±180°/s ±175°, ±180°/s ±175°, ±180°/s
Axis 6: range, speed ±175°, ±180°/s ±175°, ±180°/s ±175°, ±180°/s ±175°, ±180°/s
Typical TCP speed 1 m/s 1 m/s 1,5 m/s 2 m/s
Weight 15 kg 22 kg 40 kg 85 kg

IP classification: IP54,

I/O: Dlx16, DOx16, AIx2, AOx2;

Communication: Modbus, Profinet, Ethernet, IO;

Development environment: C#/C++/Python/Java/ROS0-45 degrees C;

Operating Humidity: 90%RH;

Operating Temperature: 0-45 degrees

Robot assembly: any position;

Materials: aluminium, steel.

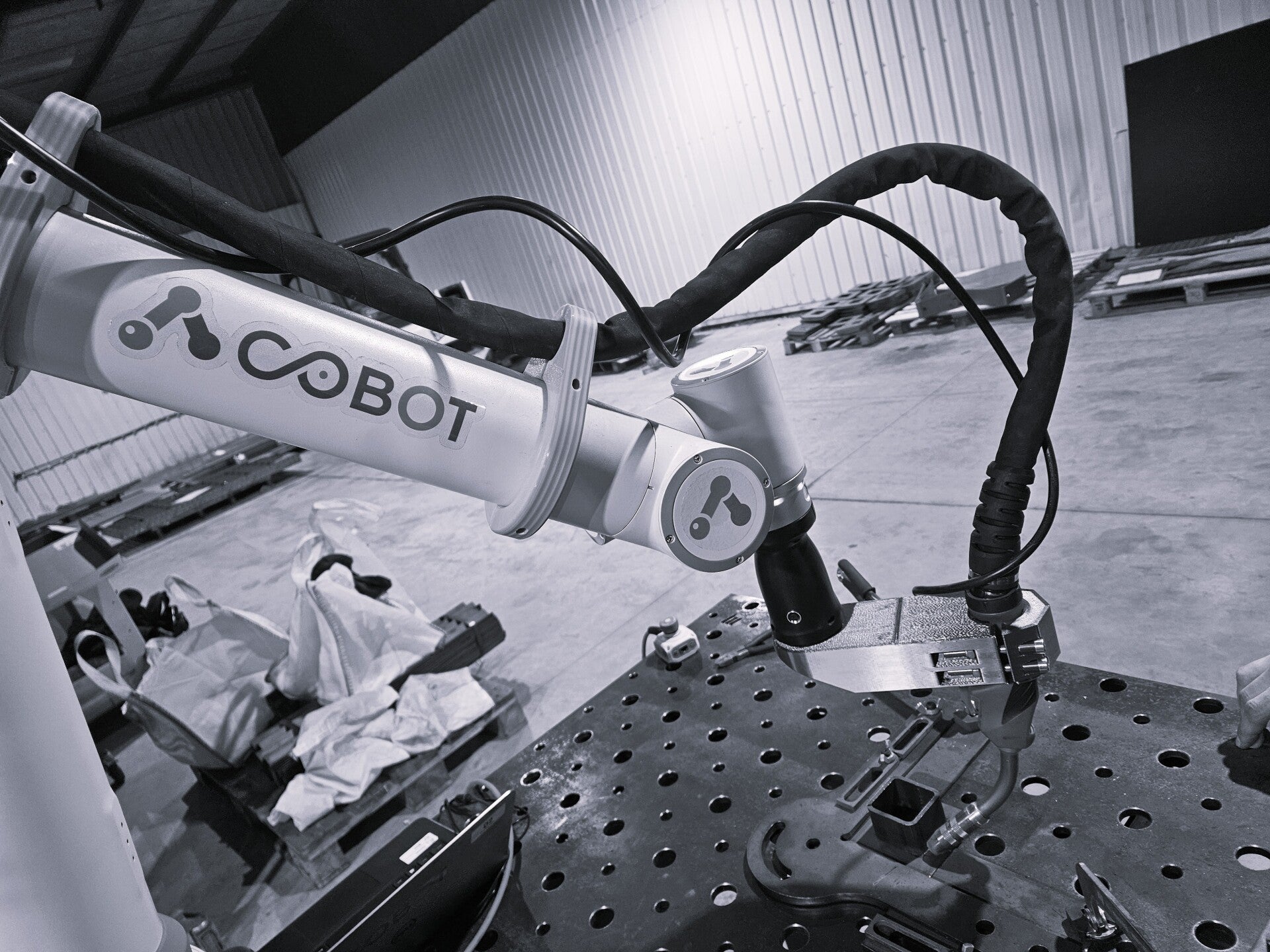

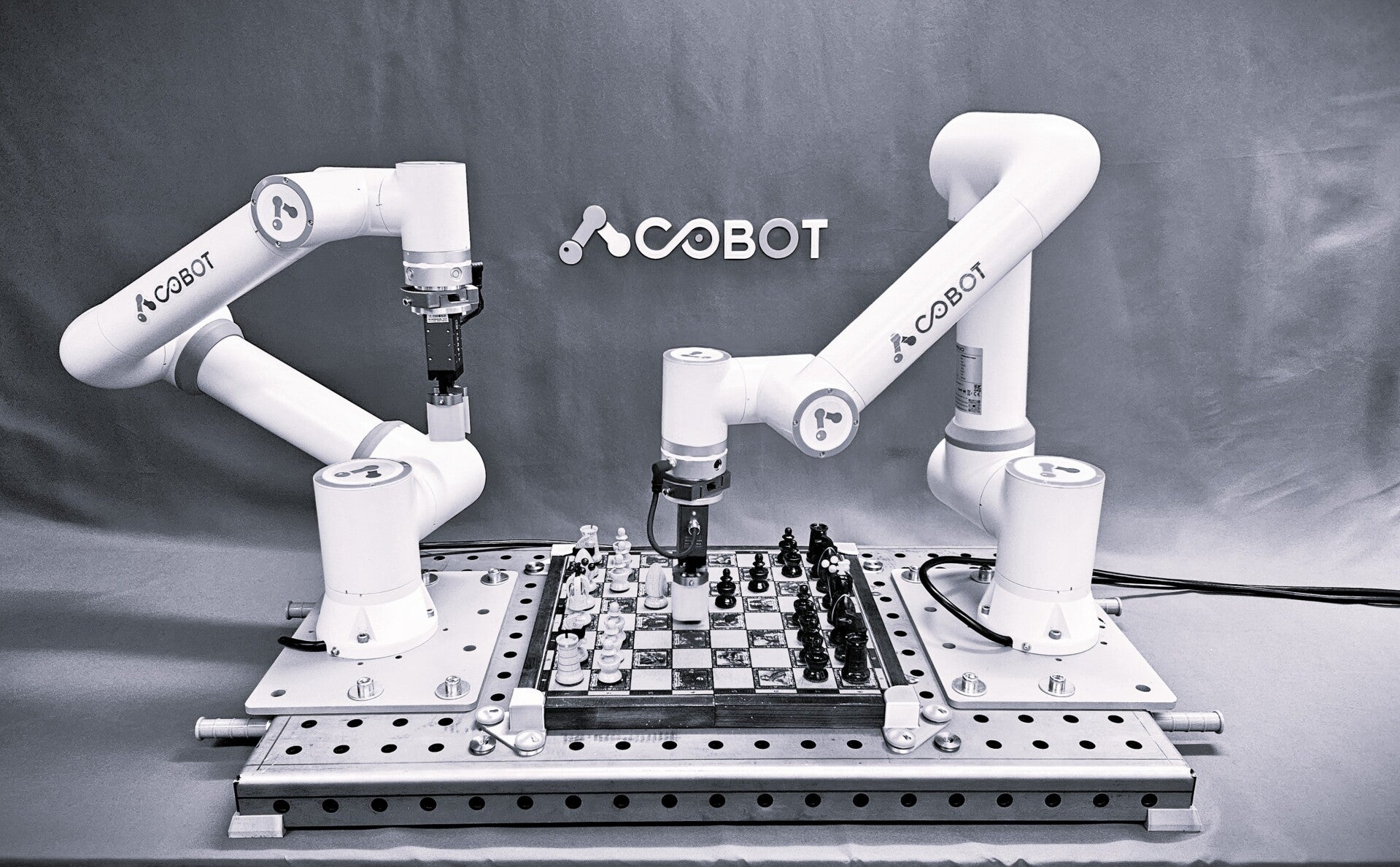

FAIRINO IN ACTION
