Cobot Gripper

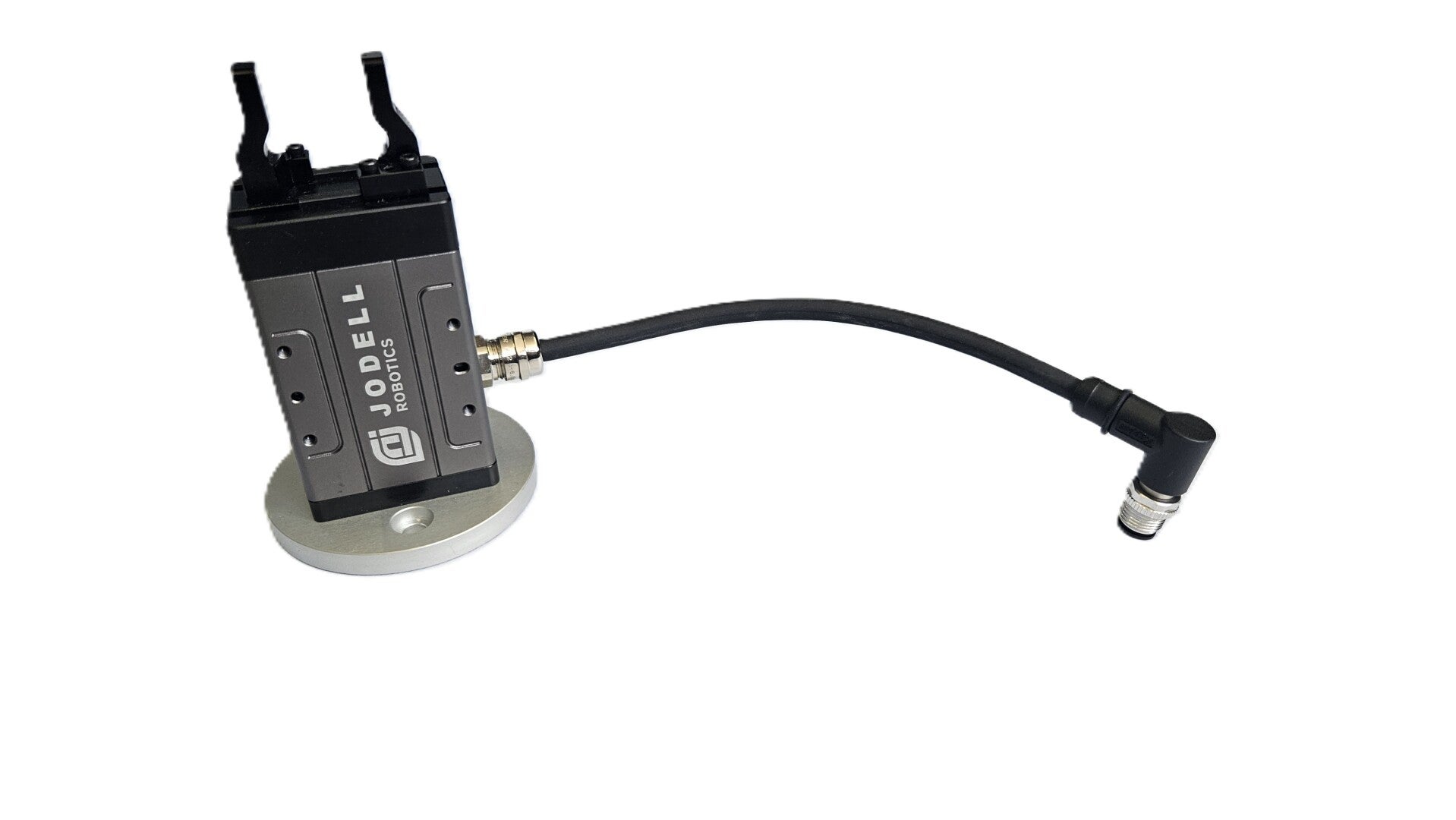

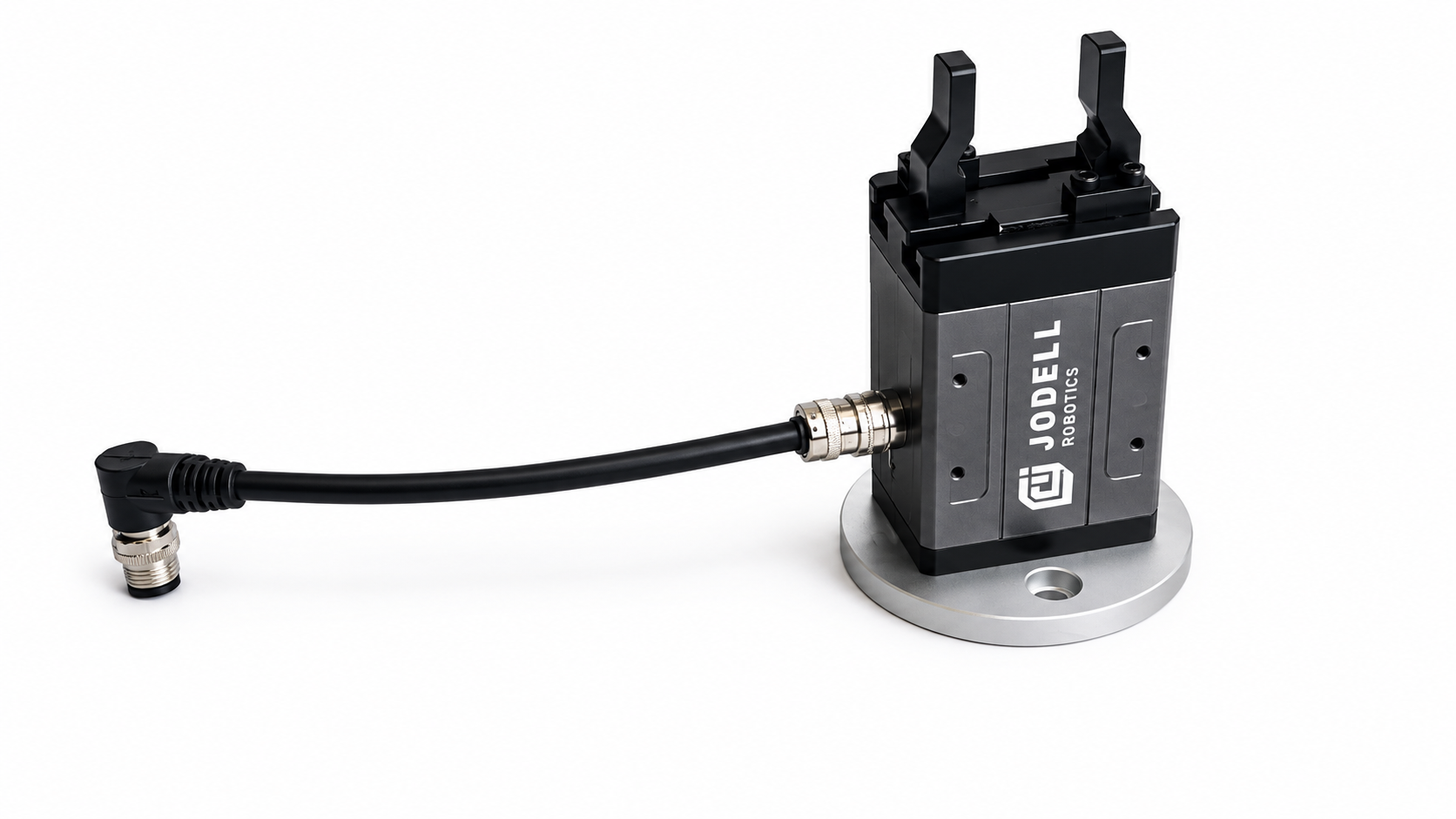

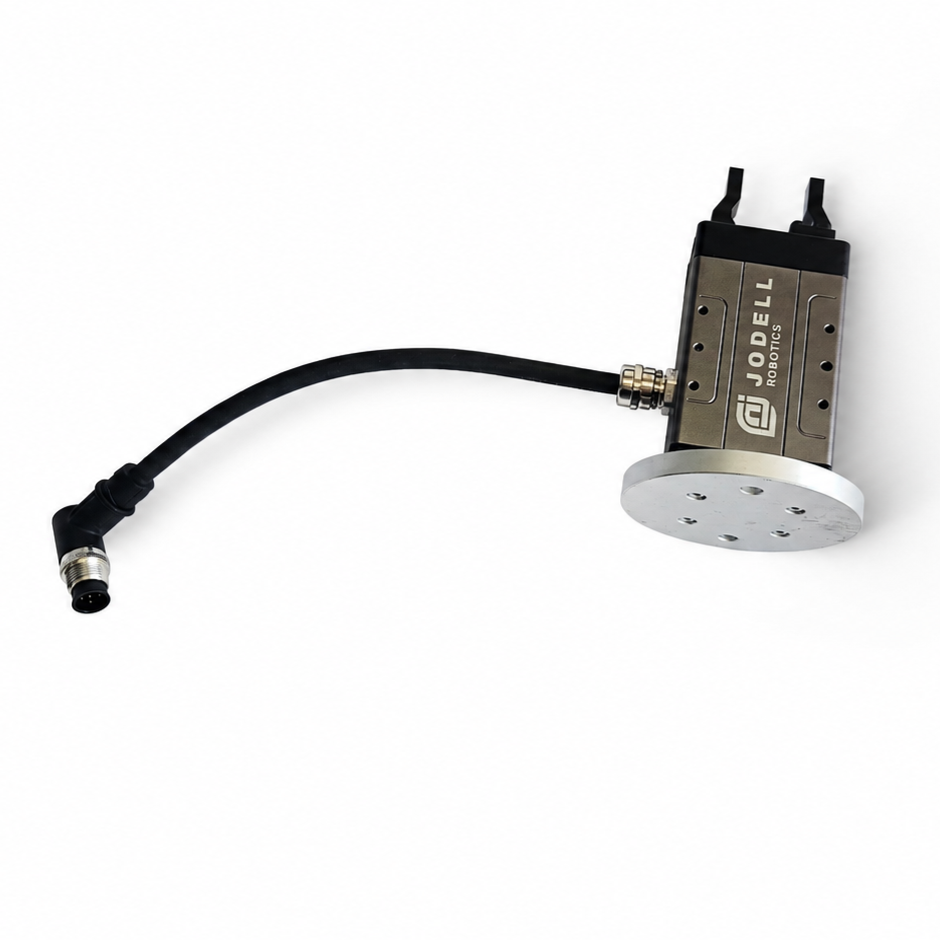

The EPG40-050 is a versatile electric parallel gripper designed for seamless integration with Fairino collaborative robots.

It allows users to precisely control grip force, speed, and position, while offering real-time status feedback for reliable operation. With its lightweight, compact form factor, the gripper maximizes payload efficiency and is ideal for tasks such as pick-and-place, machine tending, and assembly. Swappable fingertips further enhance flexibility, making it suitable for a wide range of part geometries and applications.

Product description

The EPG40-050 electric parallel gripper is designed for precise and flexible handling in combination with Fairino cobots. With adjustable force, speed, and position, the gripper can adapt to a wide range of applications, from delicate components to heavier parts. Its plug and play integration ensures fast installation and simple operation via standard I/O or Modbus RTU.

Thanks to its compact build and low weight, the robot’s payload capacity remains maximized. Integrated position and status feedback provide operators with full control and reliability during operation. The EPG40-050 is well suited for pick and place, machine tending, light assembly, and packaging processes. With interchangeable fingertips, the gripper can quickly be adapted to different product shapes, making it ideal for flexible production environments.

‍

Specifications EPG40-050:

• Stroke: 40 mm
• Grip force: 2–50 N (adjustable)
• Closing time: 0.5 s
• Position repeatability: ±0.02 mm
• Gripper weight: 0.8 kg
• Operating temperature: 5–40 °C, <85% RH
• Noise level: <40 dB
• Protection rating: IP40
• Power supply: DC 24 V ±10%
• Current: 0.85 A (max), 0.4 A (typical)
• Communication: Modbus RTU (RS-485), Digital I/O optional, Fairino Plug and play
• Certifications: CE, RoHS
• Maximum grip force per jaw: 200 N
• Maximum torque: 2 N·m
• Rated torque: 1.5 N·m
• Holding force: 2 N·m

Delivery time: 2 weeks

UK delivery cost: £49

Prices exclude VAT
