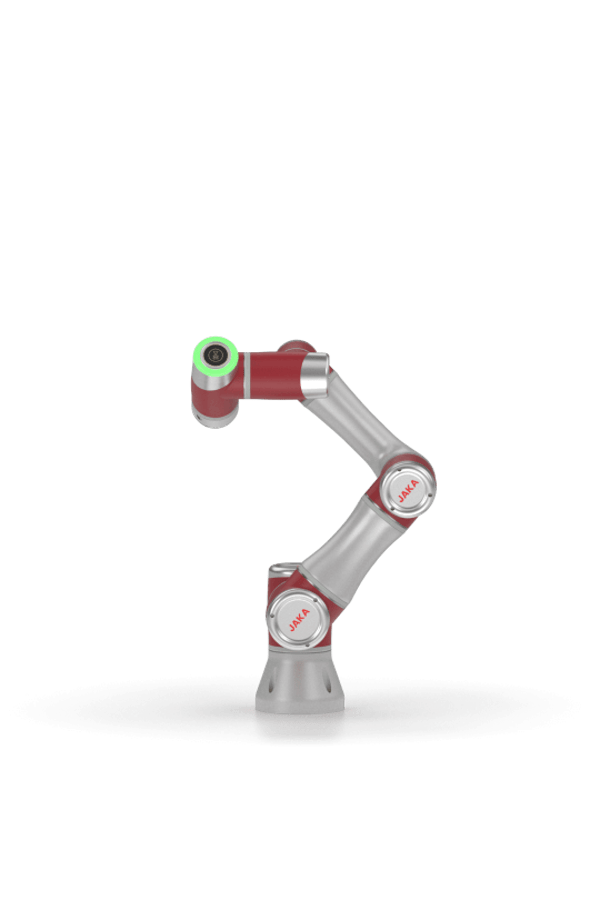

JAKA Zu3

Payload: 3 kg, Weight: 12 kg, Reach: 626 mm

Human-robot-environment collaborative integration Payload 3 kg, Self-weight 12 kg, Reach 626 mm Integrated joint design, easy to assemble and disassemble Small size with high precision, adaptable to narrow space installation and competent for high-precision operation tasks.

Product Parameters:

Payload: 3kg

Weight (including cables): 12kg

Reach: 626mm

Repeatability: ±0,02 mm

Degree of freedom: Graphical programming, and freedrive programming

Programming: Mobile terminal (computer/pad/mobile phone)

Typical consumption: 350W

IP classification: IP54

Tool I/O Ports: 2 digital inputs/ 2 digital outputs/ 2 analog inputs

Footprint: 158mm

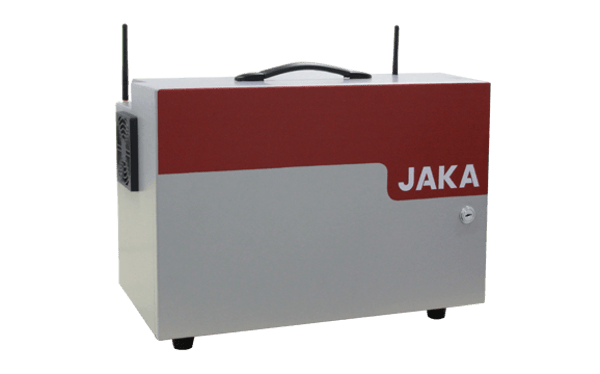

Control cabinet:

IP classification: IP44

I/O ports: 16 digital inputs, 16 digital outputs, analog inputs or outputs

Communication mode: TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethemet/IP

Power supply: 100-240VAC, 50-60Hz

Size: 410x307x235 (mm) (WxHxD)

Weight: 13.5 kg

Delivery time: 4 weeks

UK delivery cost: £149

Prices exclude VAT
