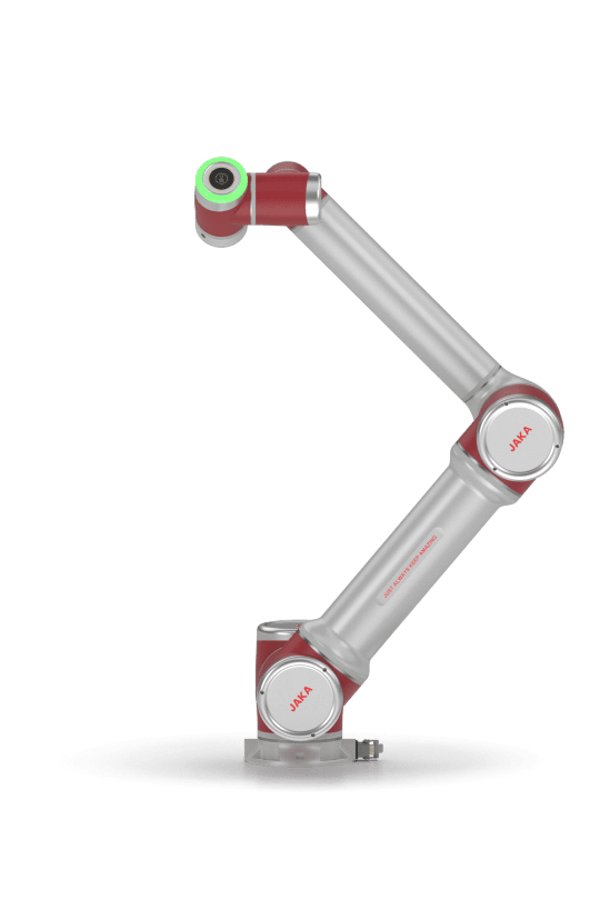

JAKA Zu12

Payload: 12 kg, Weight: 41 kg, Reach: 1327 mm

Human-robot-environment collaborative integration Payload 12 kg, Self-weight 41 kg, Reach 1327 mm Integrated joint design, easy to assemble and disassemble Higher payload and longer arm span, competent for heavy manual labor tasks Adhering to the concept of ""human-robot-environment collaborative integration"", high safety design eliminates the need for isolation fences.

Product Parameters:

Payload: 12kg

Weight (including cables): 41kg

Reach: 1327mm

Repeatability: ±0,03 mm

Degree of freedom: Graphical programming, and freedrive programming

Programming: Mobile terminal (computer/pad/mobile phone)

Typical consumption: 500W

IP classification: IP54

Humidity: 2 digital inputs/ 2 digital outputs/ 2 analog inputs

Footprint: 188mm
