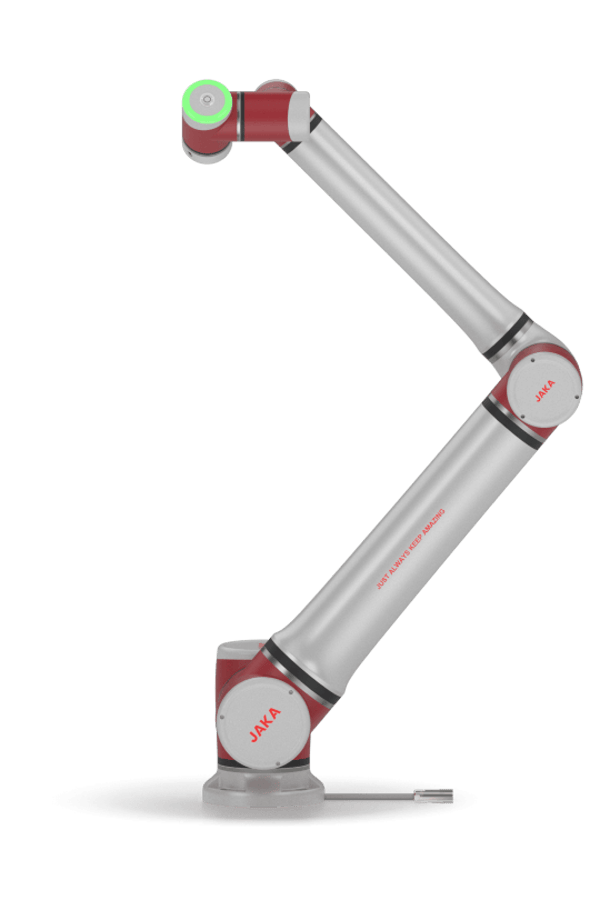

JAKA Zu20

Payload: 20 kg, Weight: 68 kg, Reach: 1780 mm

This is a brand-new collaborative robot specifically designed for high-payload and wide working radius application scenarios. It inherits the technical advantages of JAKA Zu series, including ease of use, safety, reliability and high precision. Leveraging its strengths of 1780 mm reach, 20 kg payload and IP65 protection rating, it expands the application scope and provides solutions for application scenarios such as processing, handling, welding, gluing, palletizing and packaging of heavy and large-sized workpieces.

Product Parameters:

Payload: 20kg

Weight (including cables): 68kg

Reach: 1780mm

Repeatability: ±0,05 mm

Degree of freedom: Graphical programming, and freedrive programming

Programming: Mobile terminal (computer/pad/mobile phone)

Typical consumption: 750W

IP classification: IP65

Humidity: 2 digital inputs/ 2 digital outputs/ 2 analog inputs

Footprint: 246mm
