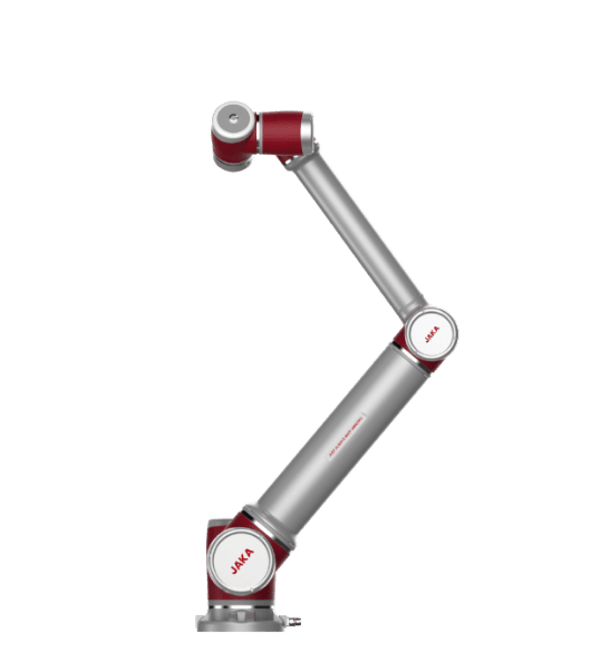

JAKA Pro16

Payload: 16 kg, Weight: 79,7 kg, Reach: 1713 mm (67.44 in)

Equipped with IP68 protection, built to thrive in the most demanding industrial environments, ideal for applications requiring resistance to dust, small particulates, and liquids such as water and oil. Capable of operating non-stop for years in harsh conditions, temperatures ranging from -10°C to 50°C.
JAKA Pro 16 to be the largest Cobot with IP68 protection. High payload capacity, perfect for heavy tasks in challenging environments with high precision such as palletizing, machine tending, polishing, grinding and welding.

Product Parameters:

Payload: 16kg

Weight (including cables): 79.7kg

Reach: 1713mm

Repeatability: ±0,03 mm

Degree of freedom: Graphical programming, and freedrive programming

Programming: Mobile terminal (computer/pad/mobile phone)

Typical consumption: 750W

IP classification: IP68

Tool I/O Ports: 2 digital inputs/ 2 digital outputs/ 2 analog inputs

Footprint: 246mm
