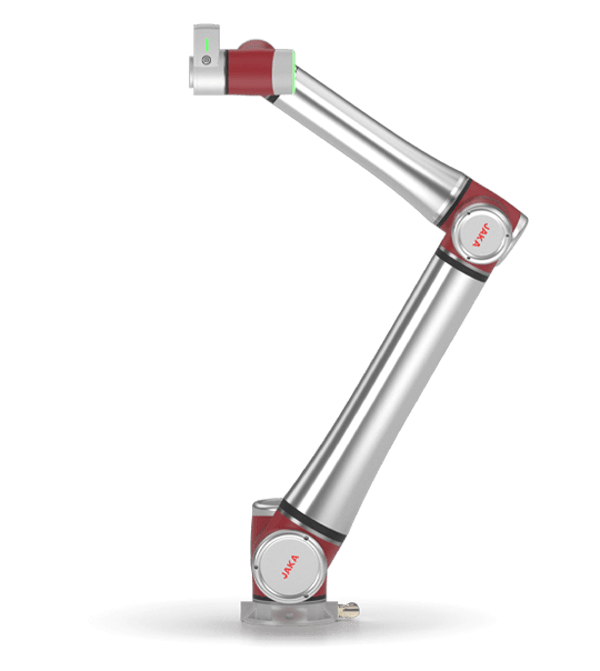

JAKA A12L

Intelligent Visual Perception Robot
It combines collaborative robot and intelligent vision
The new-generation visual perception robot enables users to see results easily.

Product Parameters:

Payload: 12kg

Weight (including cables): 41kg

Reach: 1425mm

Repeatability: ±0,03 mm

Degree of freedom: 6

Programming: Graphical Programming, Drag-and-Drop Programming

Typical consumption: 500W

IP classification: IP54 (End Joints 5/6: IP67)

Tool I/O Ports: 2 digital inputs/ 2 digital outputs/ 2 analog inputs

Teach Pendant Type: Mobile terminal (computer/pad/mobile phone)

Footprint: 188mm, M8x4

CAMERA

Lens Focal Length: Standard 12mm, Optional 8mm/16mm

Light Source Type: Standard White Light, Optional Red/Blue, Polarized/Non-polarized

Communication Interface: Gigabit Ethernet

Power Supply: Supports 9~26VDC, 1A Input, Adaptable to Industrial Voltage Environment

Power Consumption: <18W

IP Classification: IP65

Operating Humidity: 20%~95%, No Condensation

Operating Temperature: 0^°~50^°
