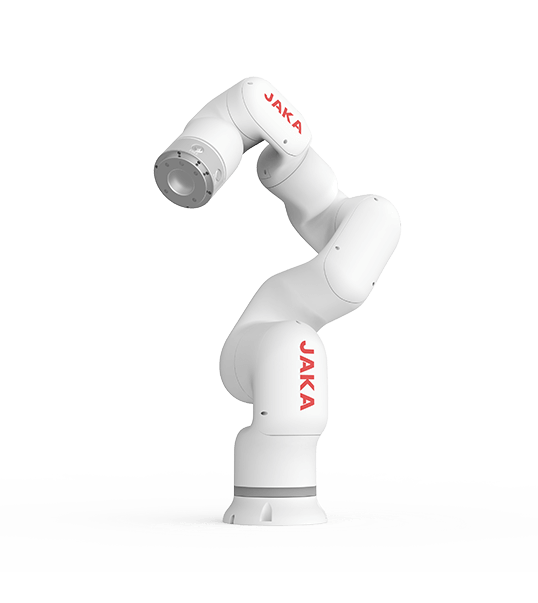

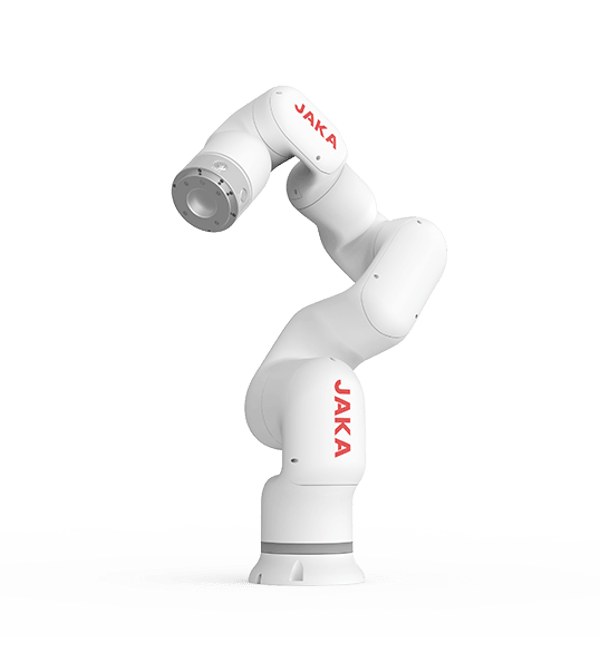

JAKA Mini2
£8,550.00
It meets the needs of application scenarios requiring lightweight design, high cycle rate, and installation in narrow spaces.
Payload: 2kg
Reach: 580mm
Repeatability: ±0,1 mm
Degree of freedom: 6
Programming: Graphical Programming, Drag-and-Drop Programming
Teach Pendant Type: Mobile terminal (pad/mobile phone) APP
Typical Tool End Speed: 1m/s
Installation Method: Installation at Any Angle
Typical consumption: 180W
IP classification: IP40
Tool I/O Ports: 2 digital inputs/ 2 digital outputs/ 2 analog inputs
Temperature: 0° -50° C
Tool I/O Size: M8
Tool I/O Power Supply: 24VDC
Material: Aluminum Alloy, PC
Robot Cable Lenght: 6m
