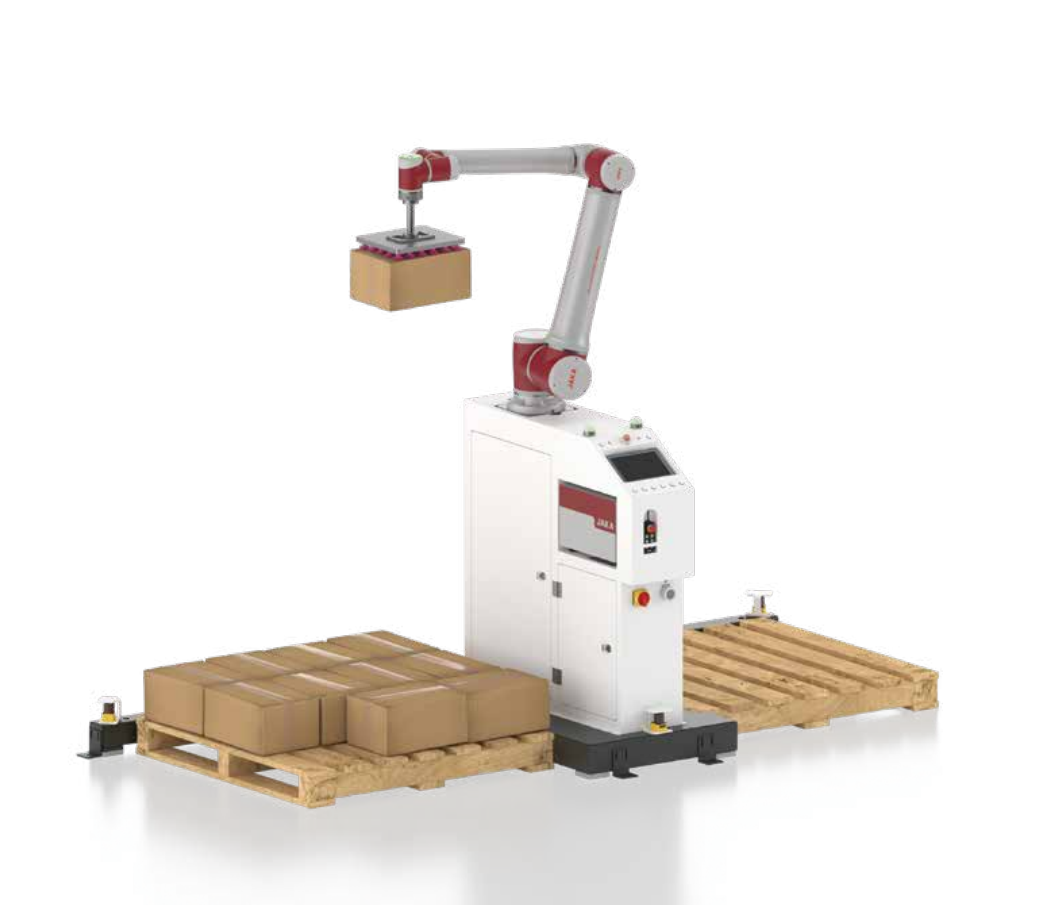

JAKA Zu20 palletising.bot
Safe collaboration and collision protection.
With a built-in torque feedback module, the robot stops at
preset collision limits to protect personnel and equipment,
ensuring safe collaboration.Certified under ISO 10218-1, ISO
13849-1, IEC 60204-1, and ISO 12100, ensuring safety and
reliability.
Quick Switching.
Modular, plug-and-play design enables quick setup and easy
adaptation for multi-product production, removing line
change hassles.
Fast Teaching for Easy Operation.
With JAKA’s palletizing program, guided 3-step setup
enables production without programming.
Plug-and-Play.

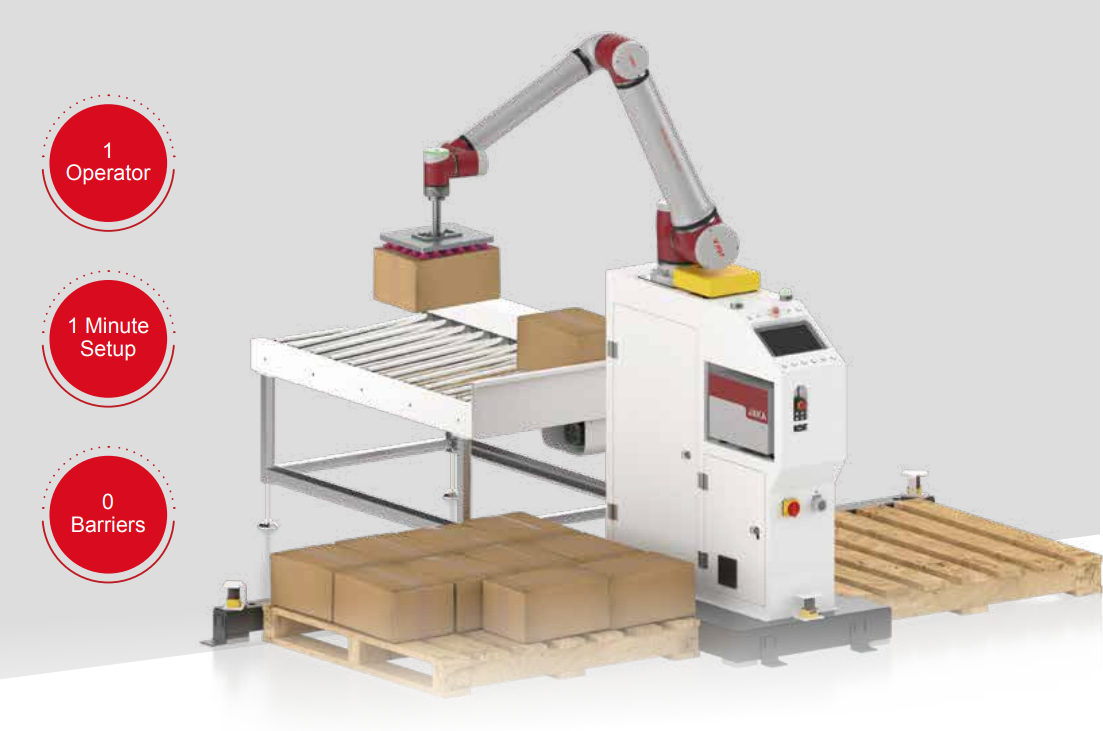

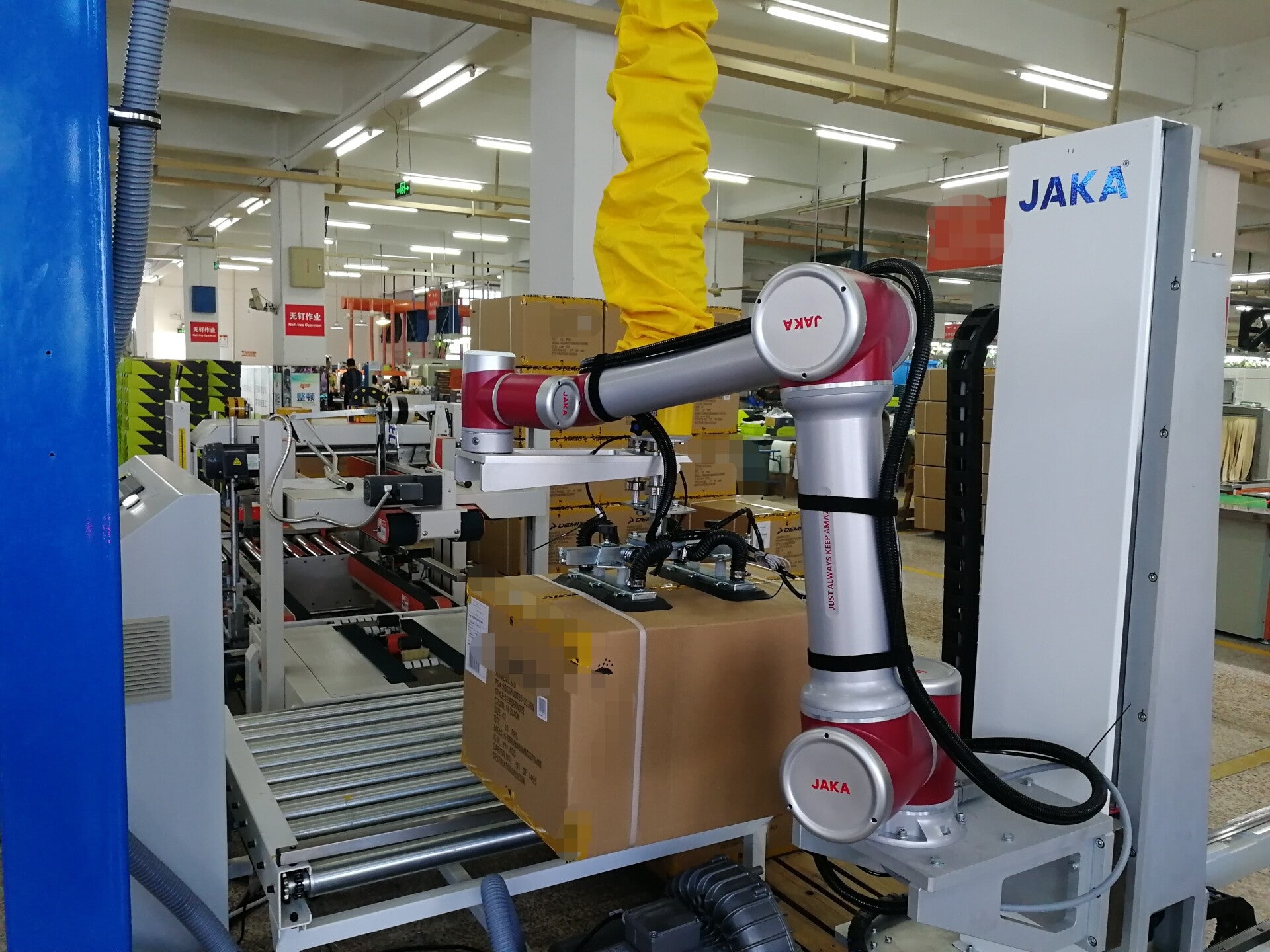

One-stop collaborative robot palletizing solution, ready to use and
deploy quickly. Control multiple robots and send commands remotely via mobile terminal.
High Payload High Throughput.

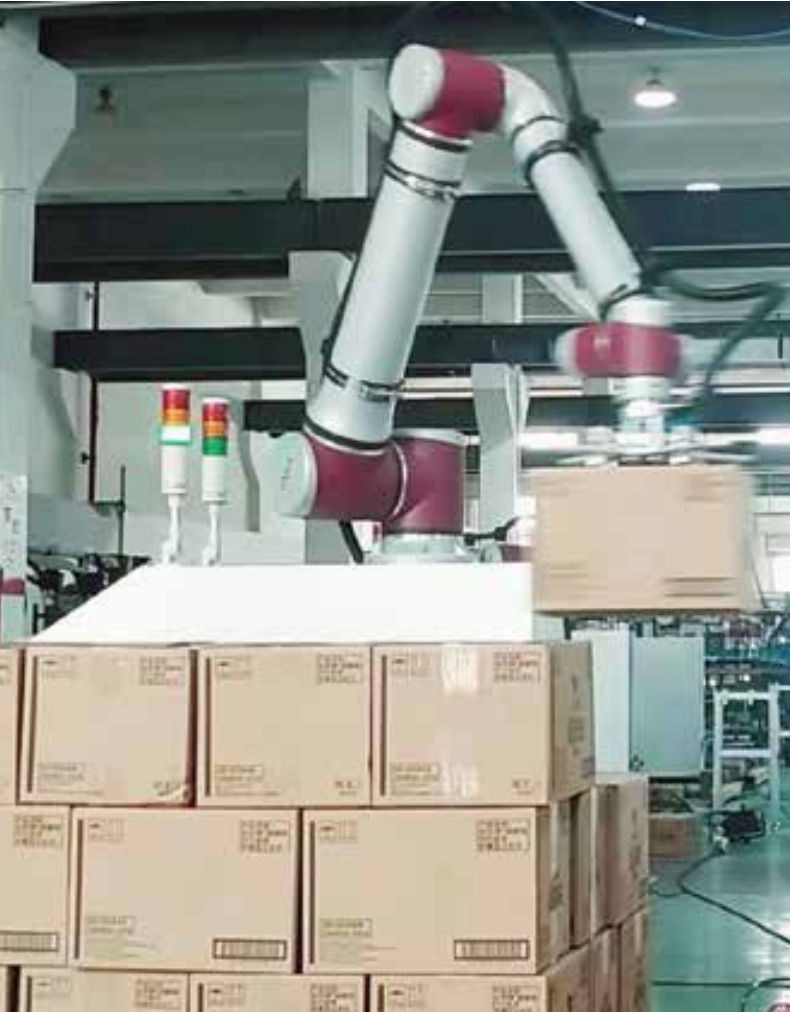

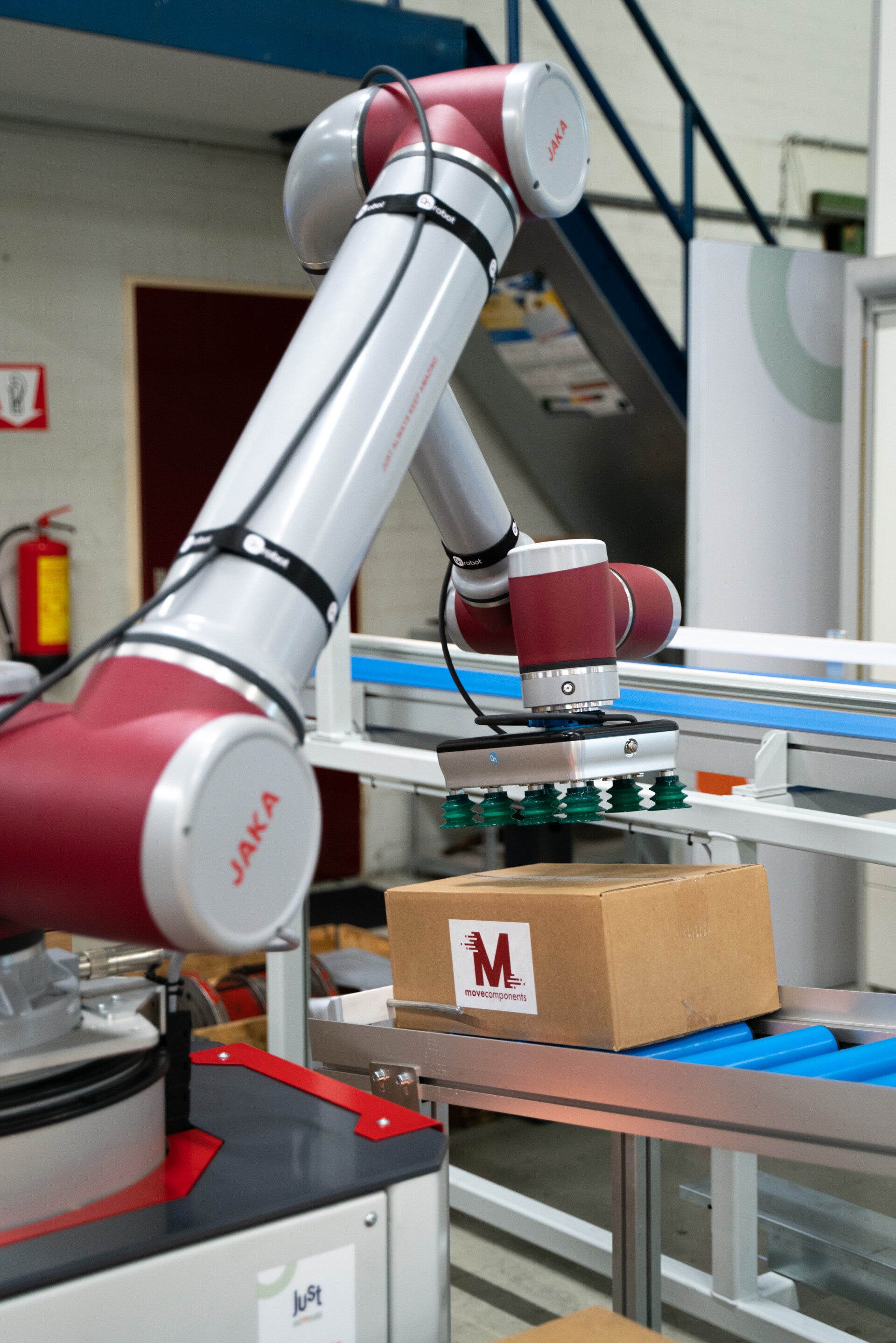

The JAKA palletizing workstation handles up to 20 kg, stacks 10
boxes per minute, and reaches heights of 2300 mm, meeting industry-leading standards for food and consumer goods.
Fast Teaching for Easy Operation.
With JAKA’s palletizing program, guided 3-step setup
enables production without programming.
Quick ROI.
Key components are 100% self-developed, ensuring ease of use,
low maintenance, and ROI within 6-12 months.

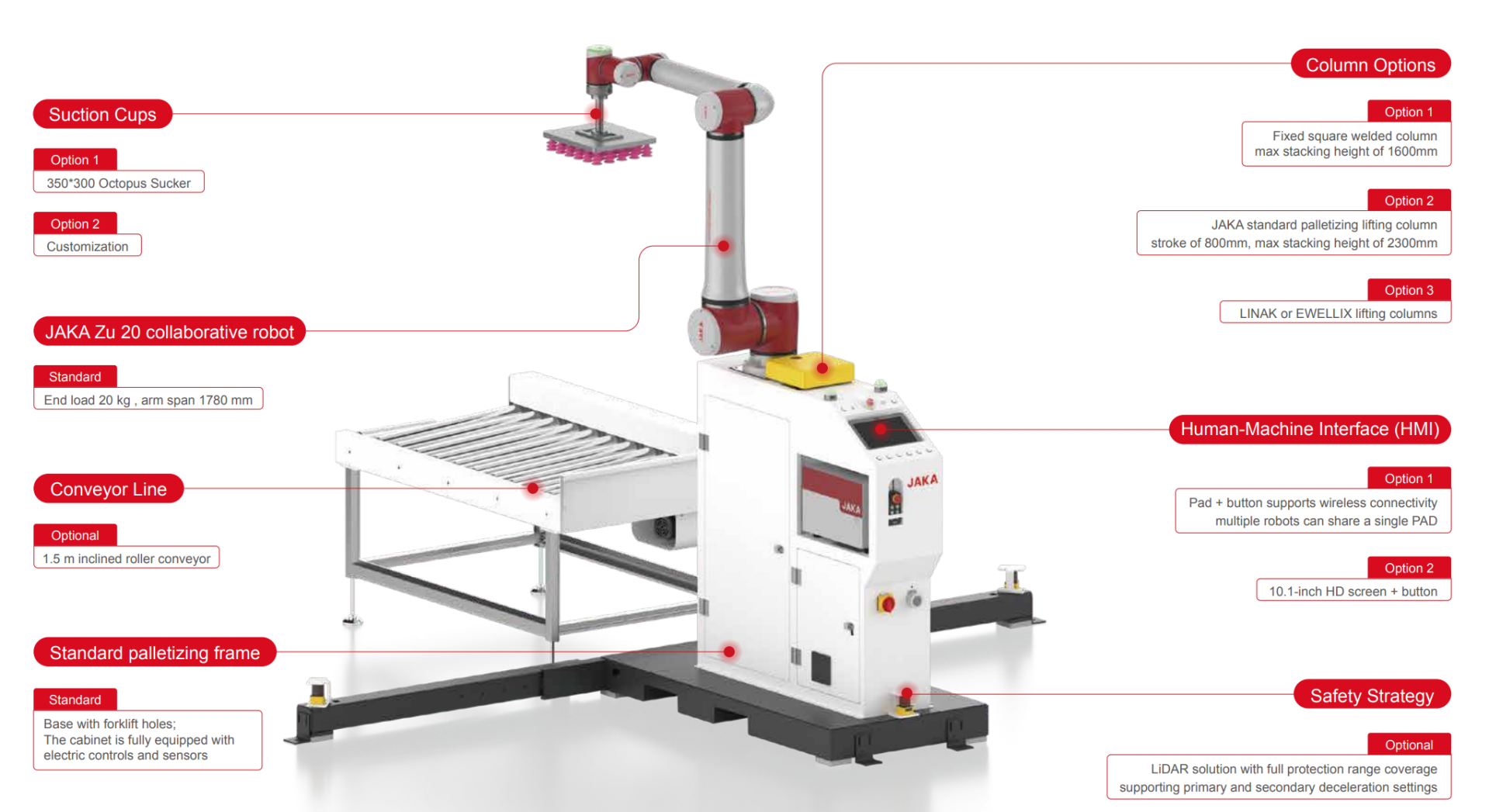

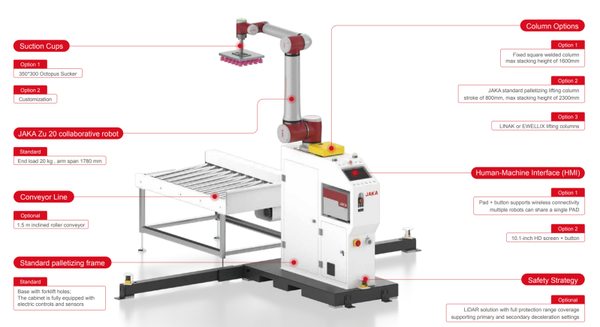

Palletizing station technical parameters:
Robot Payload 20kg
Box Weight Capacity ≤16kg
Working Radius 1780mm
Max Stacking Speed ≤8 boxes/min (varies with box type and weight)
Repeat Positioning Accuracy ±0.05mm
Standard Lifting Column Stroke 800mm

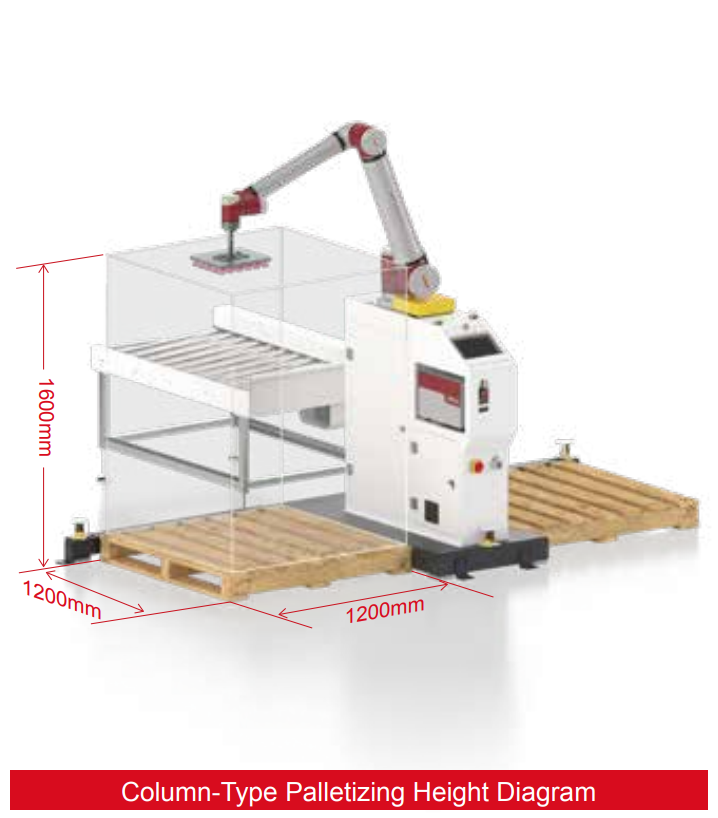

Stacking Height (no lifting column) 1600 mm (for 1.2m x 1.2m pallet)

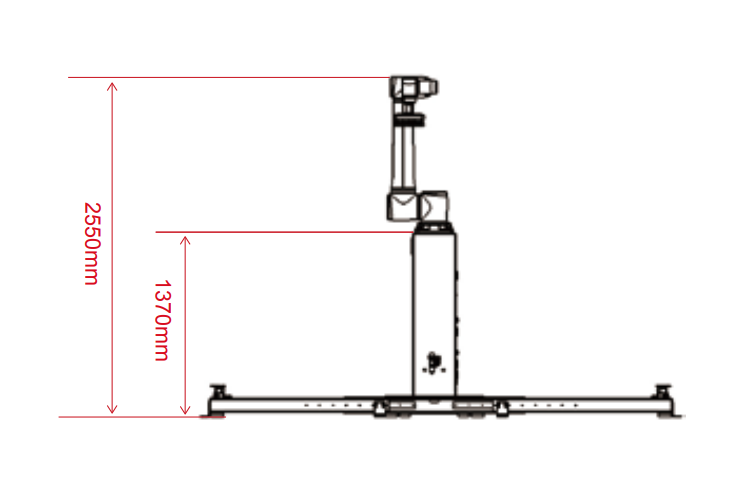

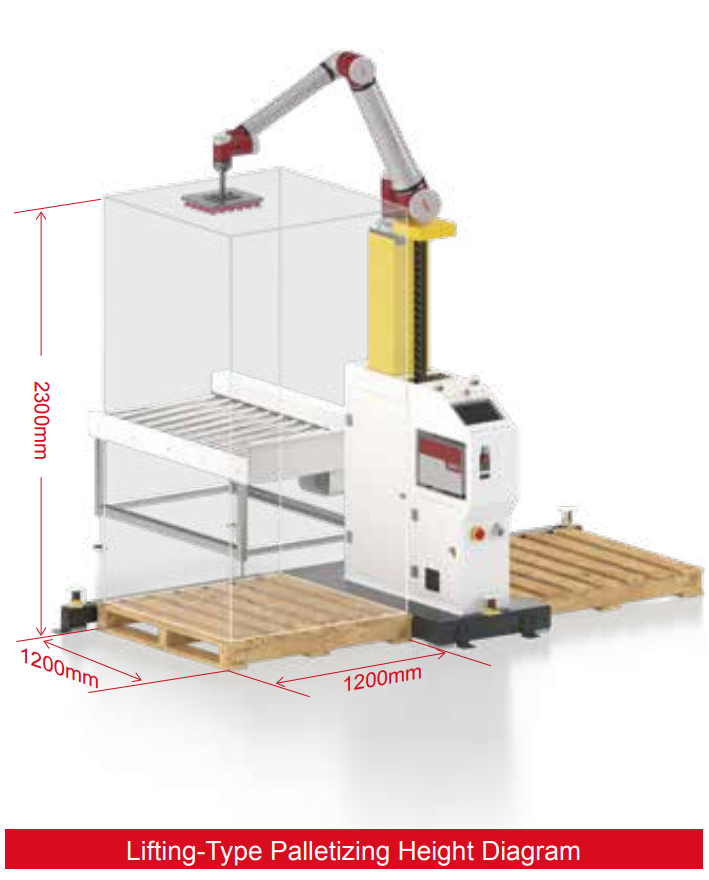

Stacking Height (with lifting column) 2300 mm (for 1.2m x 1.2m pallet)
Control Cabinet I/O Ports 16 digital inputs, 16 digital outputs, 2 analog inputs/outputs
Communication Protocols TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP
Air Pressure Requirement 0.4~0.7MPa
Power Supply Single-phase 100-250 VAC,50-60Hz(When selecting the JAKA standard palletizing liftin,the power supply is single-phase 200VAC to 240VAC, -10% to +10%, 50Hz/60Hz)
Average Power Consumption 750W
Total Weight 490kg
Delivery time: 8 weeks.
UK delivery cost: £999
Prices exclude VAT.
