DOBOT ATOM – Max

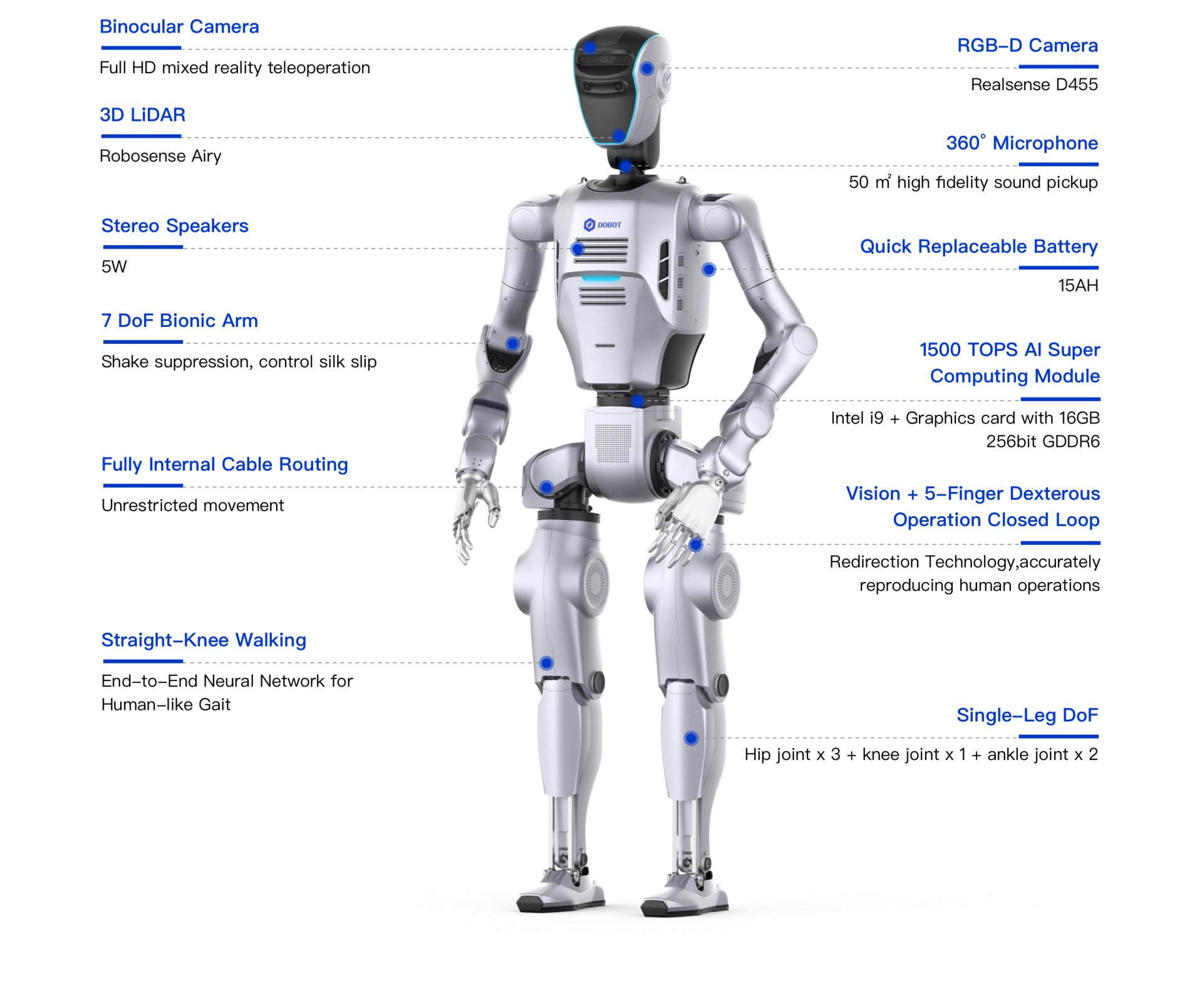

The DOBOT ATOM Max is a cutting-edge 41-DoF humanoid robot designed for advanced robotics research and industrial applications, featuring dexterous 6-DoF hands, a 60FPS Full HD vision system, and Intel RealSense D455 depth sensing. Its optional Embodied AI Set provides high-precision URDF models, an open-source training frame-work, and multi-modal data tools to accelerate development. The ATOM Max adds VR/MR teleoperation with mark-erless tracking and dual control modes (full-body/segmented), all powered by a 1500 TOPS AI module for real-time edge computing. With sub-millimeter precision and 360° environmental awareness, it significantly lowers the barrier for AI robotics innovation while supporting complex tasks from precision assembly to dynamic locomotion research.

DOBOT ATOM is built for repetitive industrial and commercial tasks like automotive assembly line material handling, beverage preparation in coffee shops, and pharmacy nighttime dispensing. It suits dynamic environments with varied product specs, similar operations, and the need for compact-space maneuvering.

Product Parameters:

Height ≈1650mm

Weight (without dexterous hands/jaws) ≈62kg

Full-body Degrees of Freedom (without dexterous hands/jaws) 29

Head Degree of Freedom 2

Single Arm Degrees of Freedom (without dexterous hand/gripper) 7

Waist Degree of Freedom 1

Single Leg Degree of Freedom 6

Single Arm Span (without dexterous hand/gripper) 600mm

Single Arm Weight (without dexterous hand/gripper) ≈6.5kg

Single Arm Load (without dexterous hand/gripper) 3.5kg

Single Arm Repetititve Positioning Accuracy ± 0.05mm

Maximum End Speed of Arm 1.5m/s

Audio Devices 360° microphone x1

Neodymium strong magnetic speaker x2

Maximum Walking Speed 1.5m/s

Joint Assembly Actuators Hollow Alignment Yes

Basic Computing Module intel i5

1500 TOPS AI Computing Module Intel i9 (24 cores 32 threads)

Graphics card with 16GB256bit GDDR6 (FP32 GPUcomputing power 41.15 TFLOPS)

Battery Life ≈2h

Battery Chargers ≈1h

End Actuator 6 DoF dexterous hand x2

Head Sensor RGB-D Camera x1 + Full HD Binocular Camera x1

Wrist Sensor RGB-D Camera x2

Waist Sensor RGB-D Camera x2

Head LiDAR 3D LiDAR x1

SDK Support Supported

Warranty 1 Year

Technical Support Premium+, Full documentation + exclusive training

Onsite Training Available

Remote Service 3 sessions/year

Delivery time: 4 weeks.

UK delivery cost: £1125

Prices exclude VAT.
