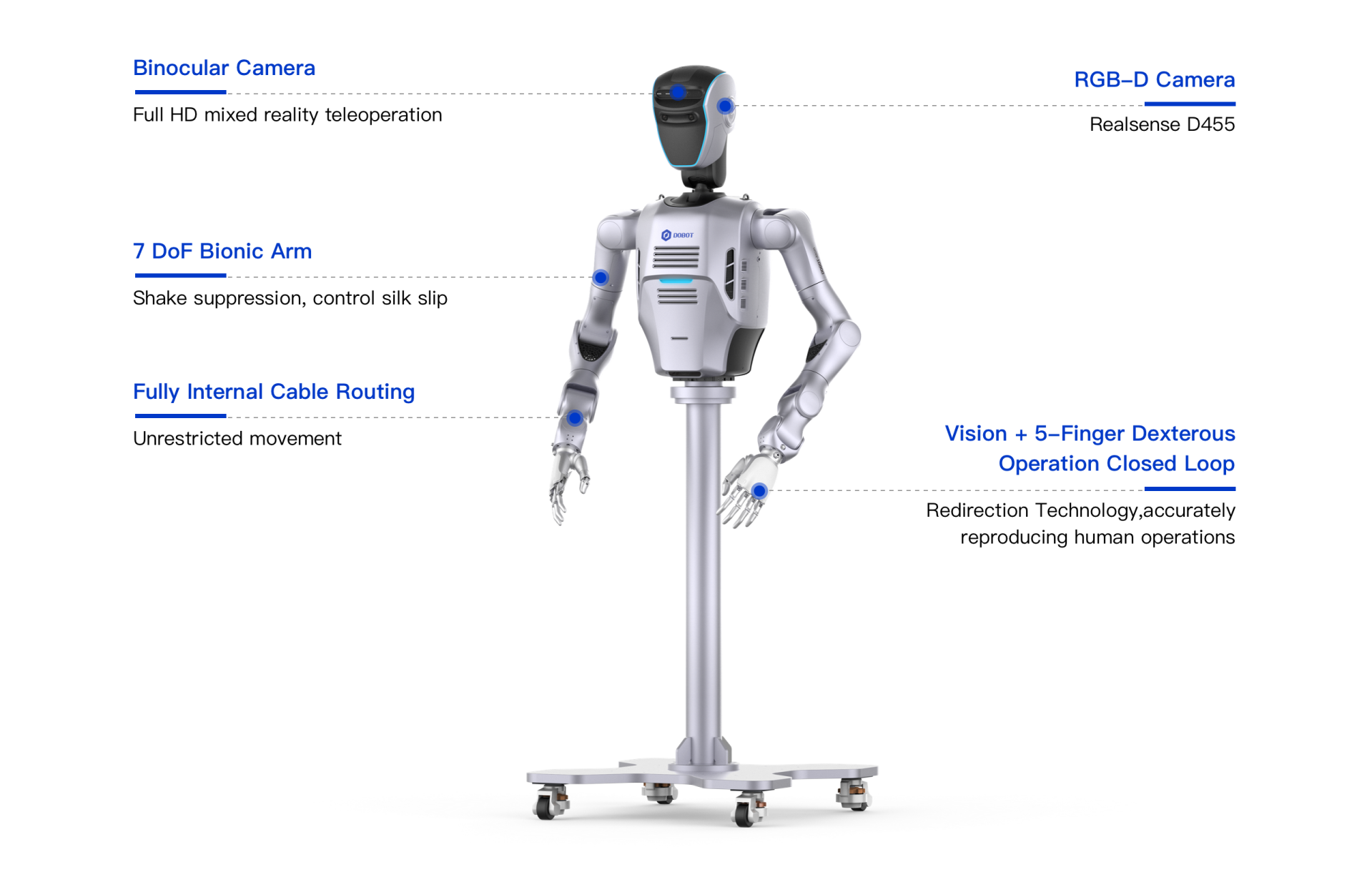

DOBOT Atom D - Data Collection
Optimized for large-scale data tasks,
Featuring 7-DoF dual arms and a 2-DoF head with customizable end-effectors (dexterous hands/grippers and wrist cameras). It integrates an Intel Realsense D455 camera (6m range) and a 60fps Full HD binocular camera that minimizes VR/MR motion sickness while ensuring high-quality imaging. The system supports Ethernet connectivity for efficient external data collection and processing.
Product Parameters:
Height ≈650mm
Weight (without dexterous hands/jaws) ≈20kg
Full-body Degrees of Freedom (without dexterous hands/jaws) 16
Head Degree of Freedom 2
Single Arm Degrees of Freedom (without dexterous hand/gripper) 7
Single Arm Span (without dexterous hand/gripper) 600mm
Single Arm Weight (without dexterous hand/gripper) ≈6.5kg
Single Arm Load (without dexterous hand/gripper) 3.5kg
Single Arm Repetititve Positioning Accuracy ± 0.05mm
Maximum End Speed of Arm 1.5m/s
Maximum Walking Speed 1.5m/s
Joint Assembly Actuators Hollow Alignment Yes
Basic Computing Module intel i5
Battery Chargers Power Supply
Head Sensor RGB-D Camera x1 + Full HD Binocular Camera x1
SDK Support Supported
Warranty 1 Year
Technical Support Premium: Full documentation + ecosystem support
Onsite Training Not available
Remote Service 3 sessions/year
Accessories (Included)
Delivery time: 4 weeks.
UK delivery cost: £1125
Prices exclude VAT.
