CR3AS

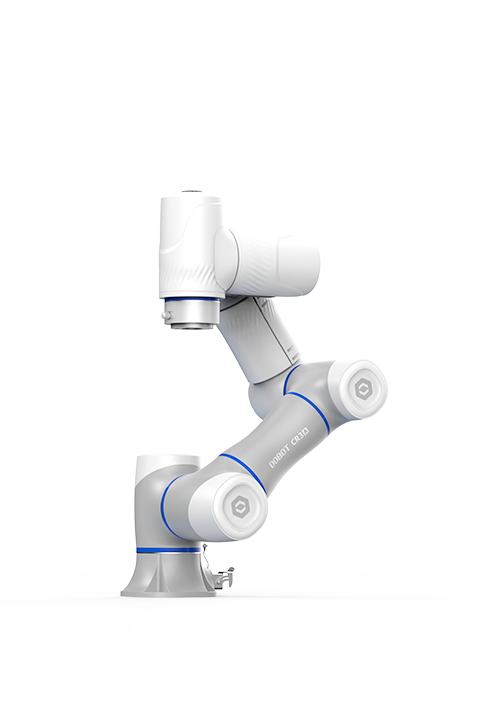

CR3AS Collaborative Robot

The CR3AS has a compact design for quick deployment into tight spaces. Equipped with SafeSkin for pre-collision detection, CR3AS allows for efficient human-machine collaboration.

Dobot SafeSkin, the industry's first contactless pre-collision safety technology, is redefining safety standards in human-robot collaboration. This groundbreaking innovation sets a new benchmark, elevating cobot safety to unprecedented heights while empowering manufacturers to achieve faster production without compromising operator protection.

Weight 16.5 kg

Maximum Payload 3 kg

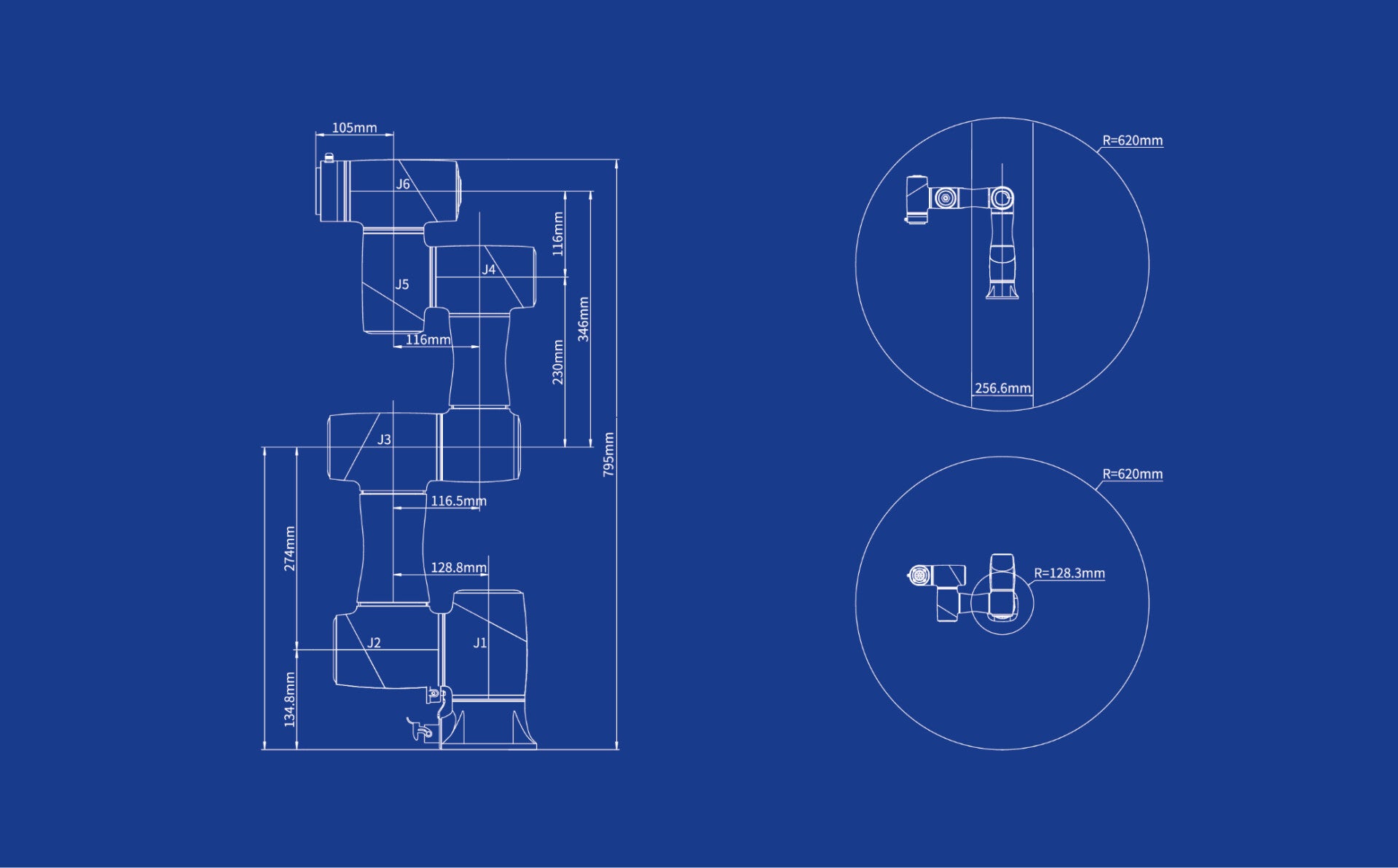

Working Radius 620 mm

Max Reach 795 mm

Rated Voltage 48V DC

Maximum Linear Speed 2 m/s

Joint Ranges J1- ±360°, J2- ±360°, J3- ±155°, J4- ±360°, J5- ±360°, J6- ±360°

Maximum Speed of Joints J1/J2- 180° /s, J3/J4/J5/J6 - 223° /s

End-Effector I/O Interface DI/DO/AI 2, AO 0

Communication Interface Communication RS485

Controller I/O DI 16, DO/DI 16, AI/AO 2, ABZ Incremental Encoder 1,

Repeatability ±0.02 mm

Communication TCP/IP, Modbus, Wi-Fi

IP Rating IP54

Temperature 0° ～ 50° C

Power 120W

Materials Aluminum alloy, ABS plastic

Delivery time: 4 weeks

UK delivery cost: £427

Prices exclude VAT
