CR5AS

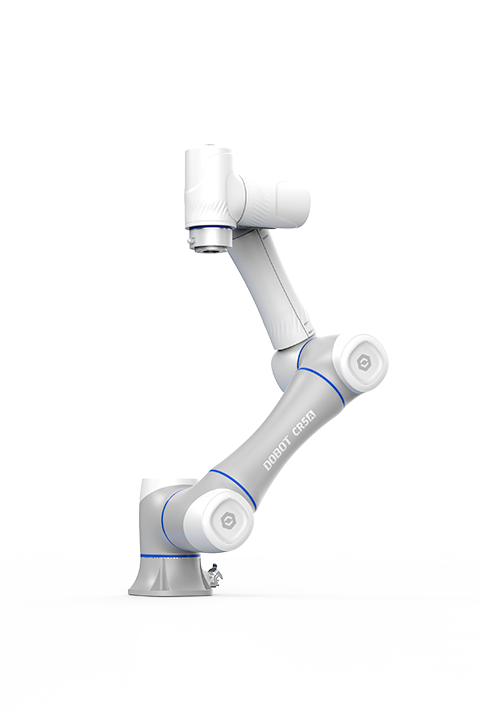

CR5AS Collaborative Robot

The CR5AS has a repeatability of ±0.02 mm and 5 levels of adjustable collision detection settings. The intelligent interaction panel offers quick access to drag-to-teach functionality. Equipped with SafeSkin for pre-collision detection, CR5AS allows for efficient human-machine collaboration.

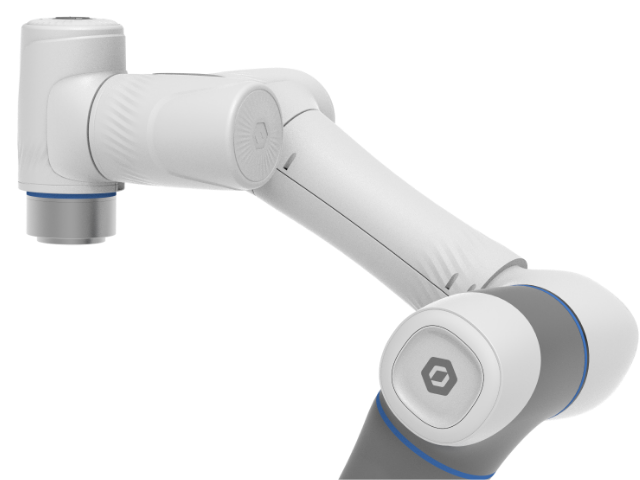

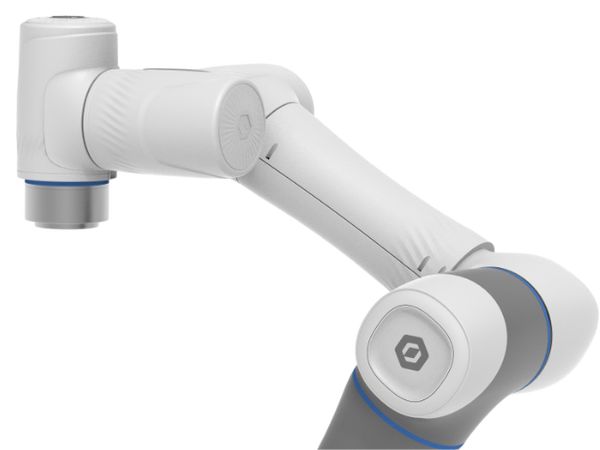

Dobot SafeSkin, the industry's first contactless pre-collision safety technology, is redefining safety standards in human-robot collaboration. This groundbreaking innovation sets a new benchmark, elevating cobot safety to unprecedented heights while empowering manufacturers to achieve faster production without compromising operator protection.

Weight 25 kg

Maximum Payload 5 kg

Working Radius 900 mm

Max Reach 1096 mm

Rated Voltage 48V DC

Maximum Linear Speed 2 m/s

Joint Ranges J1- ±360°, J2- ±360°, J3- ±160°, J4- ±360°, J5- ±360°, J6- ±360°

Maximum Speed of Joints J1/J2/J3- 180° /s, J4/J5/J6 - 223° /s

End-Effector I/O Interface DI/DO/AI 2, AO 0

Communication Interface Communication RS485

Controller I/O DI 16, DO/DI 16, AI/AO 2, ABZ Incremental Encoder 1,

Repeatability ±0.02 mm

Communication TCP/IP, Modbus, Wi-Fi

IP Rating IP54

Temperature 0° ～ 50° C

Power 150W

Materials Aluminum alloy, ABS plastic

Delivery time: 4 weeks

UK delivery cost: £519

Prices exclude VAT
