CR10AS

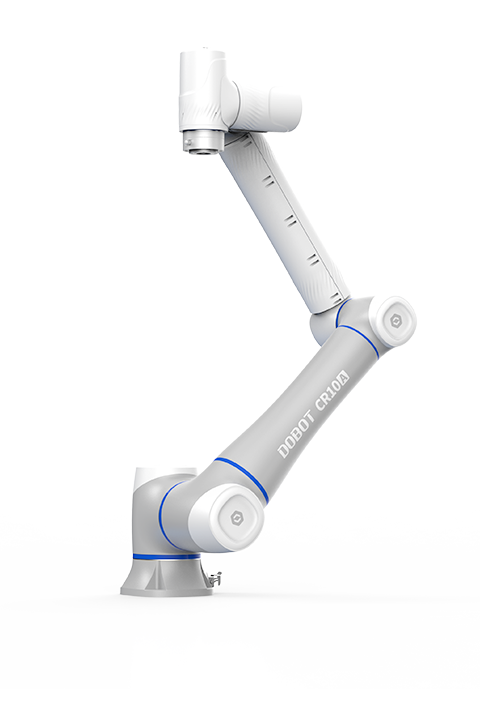

CR10AS Collaborative Robot

The CR10AS has a maximum reach of 1525 mm and max operating speed of 4 m/s. With DH parameters compensation technology and vibration supression algorithm, it is highly reliable when operating at high speed. Equipped with SafeSkin for pre-collision detection, CR10AS allows for efficient human-machine collaboration.

Dobot SafeSkin, the industry's first contactless pre-collision safety technology, is redefining safety standards in human-robot collaboration. This groundbreaking innovation sets a new benchmark, elevating cobot safety to unprecedented heights while empowering manufacturers to achieve faster production without compromising operator protection.

Weight 40 kg

Maximum Payload 10 kg

Working Radius 1300 mm

Max Reach 1525 mm

Rated Voltage 48V DC

Maximum Linear Speed 2 m/s

Joint Ranges J1- ±360°, J2- ±360°, J3- ±160°, J4- ±360°, J5- ±360°, J6- ±360°

Maximum Speed of Joints J1/J2- 150° /s, J3 - 180° /s, J4/J5/J6 - 233° /s

End-Effector I/O Interface DI/DO/AI 2, AO 0

Communication Interface Communication RS485

Controller I/O DI 16, DO/DI 16, AI/AO 2, ABZ Incremental Encoder 1,

Repeatability ±0.03 mm

Communication TCP/IP, Modbus, Wi-Fi

IP Rating IP54

Temperature 0° ～ 50° C

Power 350W

Materials Aluminum alloy, ABS plastic

Delivery time: 4 weeks

UK delivery cost: £844

Prices exclude VAT
